BUILDING INTEGRATED PHOTOVOLTAIC SOLUTIONS

Hevel BIPV solutions are innovative and financially feasible alternative to conventional facade cladding

ECO FRIENDLY SOLUTION FOR
FACADE CLADDING
SIGNIFICANT REDUCING OF
OPERATING COSTS
ANY COLOR AND WIDE RANGE
OF CONFIGURATIONS

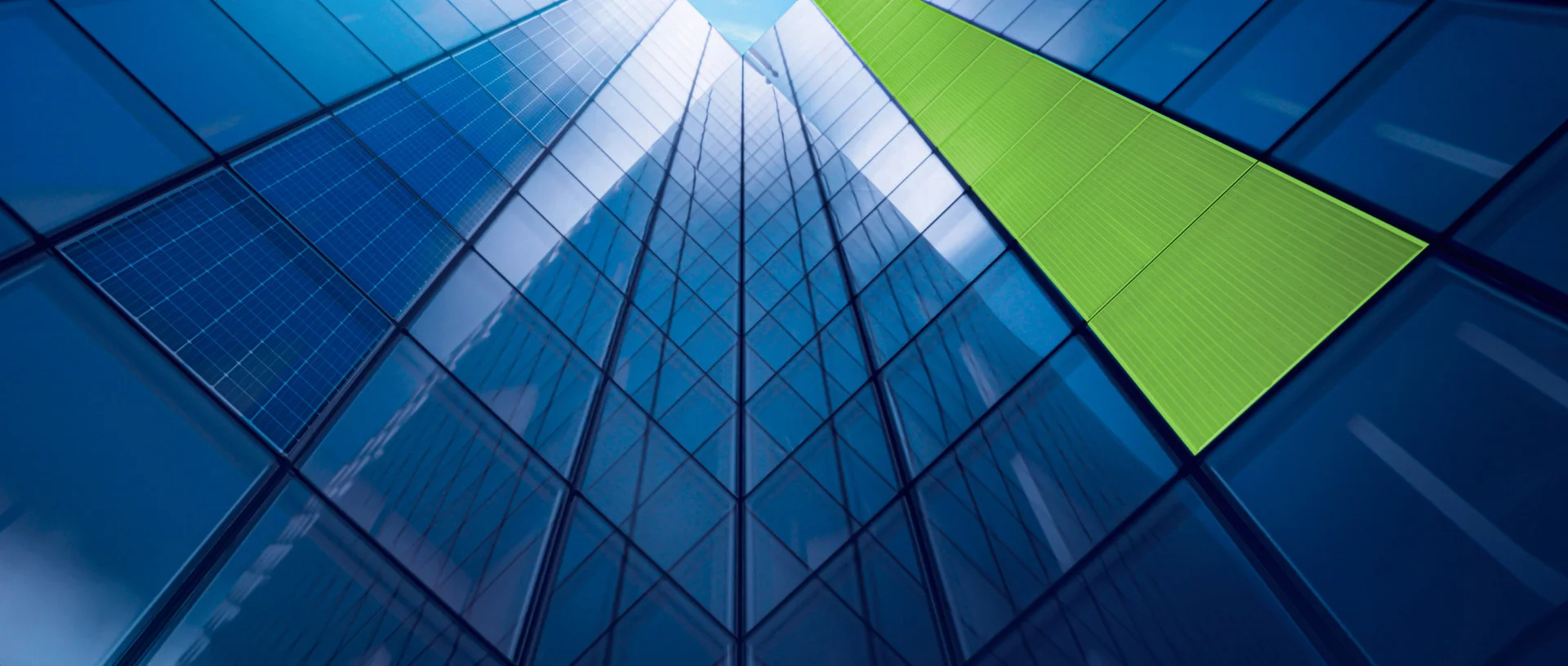

Building integrated PV facade system

Hevel BIPV solutions are innovative and financially feasible alternative to conventional facade cladding.

Besides power generation, Hevel BIPV solutions contribute to building aesthetics.

Additional benefits

COST SAVINGS
Using a grid-connected BIPV solution allows to reduce the electricity bill significantly, while minimizing the risks from sudden electricity tariff spikes.
01
ECO-FRIENDLY
BIPV- a substantial contribution to European Green deal initiative. BIPV can support the objectives of a European Green Deal and accelerate the decarbonisation of EU’s building stock.
02
UNINTERRUPTED POWER SUPPLY
BIPV solutions combined with energy storage ensure uninterrupted power supply, reducing the risks related to power blackouts.
03
AESTHETIC LOOK
BIPV solution is an innovative global trend. Building will not go unnoticed and will be sure to garner attention for its aesthetic design.
04

Application

BIPV SOLUTIONS CAN BE USED ON ANY TYPE OF COMMERCIAL AND RESIDENTIAL BUILDINGS, IN BOTH, GREENFIELD OR RENOVATION PROJECTS.
01
Administrative buildings
02
Municipal services facilities
03
Residential houses
04
Shopping centers
05
Office buildings
06
Industrial facilities
07
Airport/Railway stations
08
Hotels
01 Administrative buildings
02 Municipal services facilities
03 Residential houses
04 Shopping centers
05 Office buildings
06 Industrial facilities
07 Airport/Railway stations
08 Hotels

Reliability and safety

50 years
BIPV solution warranty 50 years
from-45°C to +85°C
Climatic conditions for system operation
150 m
Maximum installation height of the faсade system

Hevel BIPV has passed comprehensive testing in seven independent accredited laboratories. The results of every test were positive, allowing BIPV to be used in any type of building.

  • Fire tests of a mounted BIPV
  • Load capacity tests
  • The corrosion resistance and durability of the materials
  • Frost resistance tests
  • Fire hazard class tests
  • Sanitary and epidemiological tests
  • Electromagnetic radiation safety tests
TEMPERED GLASS
HIGH MOISTURE RESISTANCE
COMPLIENT WITH FIRE SAFETY STANDARDS

Make a request

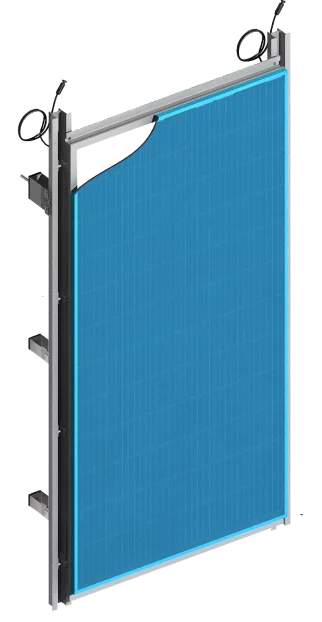

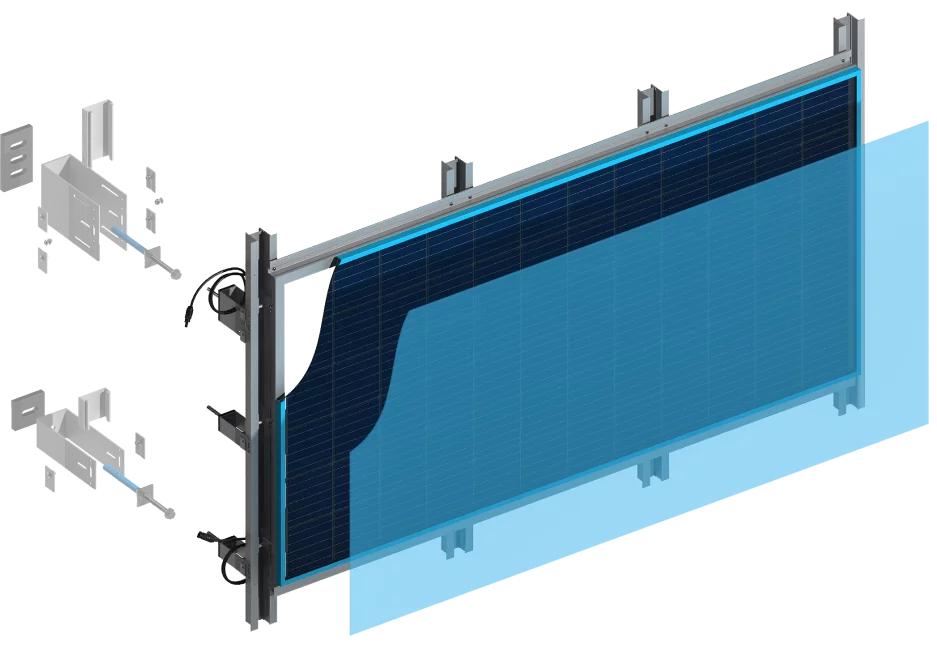

HEVEL BIPV SOLUTION DESIGN

Hevel BIPV solution consists of 4 main components:

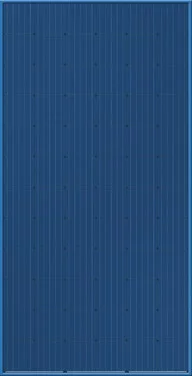

Photovoltaic module
Facing cassette
Rainscreen
Frame
BRACKET
The bracket securely fastens the curtain system’s frame to the building’s supporting base
MC4 CONNECTORS
For quick and easy connection of PV modules
MC4 CONNECTORS
For quick and easy connection of PV modules
PV CELLS
FRAME
The frame is manufactured to match the color of the glass for a visually universal facade
FACING CASSETTE
A frame with a cassette structure where the PV module is mounted. The cassette attaches to guide rails with hooks, adhesives and screws
GUIDE PROFILES
Vertical, horizontal or hybrid, depending on project requirements
FRONT GLASS

Rainscreen facade

The cassette profile, stiffeners, and clamps are made of aluminum alloy
LIGHT WEIGHT OF RAINSCREEN FACADE
TEMPERATURE DROPS RESISTANCE
HIGH RESISTANCE TO CORROSION
DURABILITY
EASY INSTALLATION

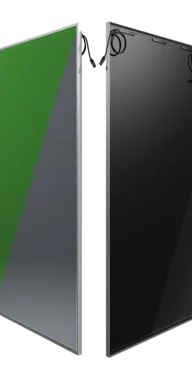

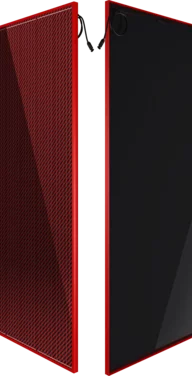

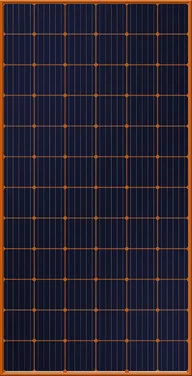

PV MODULE OPTIONS

PV modules for BIPV solutions are available in a wide range of configurations. Depending on the color of the front and back side glass, a variety of design solutions can be considered.

Hevel BIPV modules are available in a rich palette of colors, which opens the possibility for the most daring and creative ideas to be brought to life in original and innovative projects, while ensuring the reduced operating costs of the building.

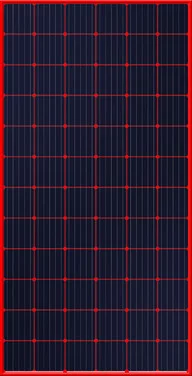

CHOOSE COLORS USING THE CLASSIC RAL COLOR SCHEME
APPLY ANY IMAGE AND TEXTURE
MORE THAN 100 COLOR OPTIONS
STANDARD SOLUTION

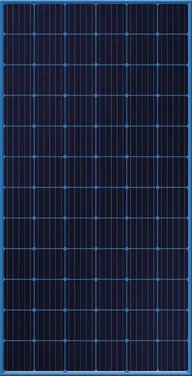

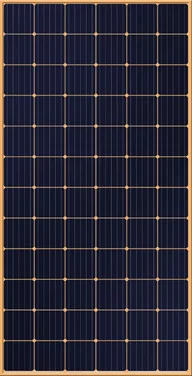

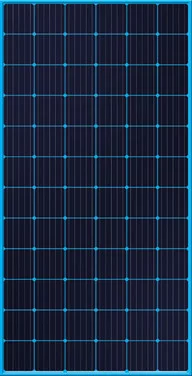

TYPE А
front side:
transparent glass
back side:
transparent glass
395 W
PV MODULE POWER

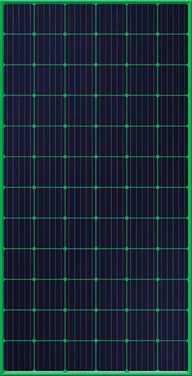

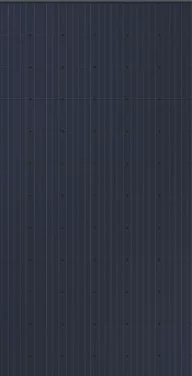

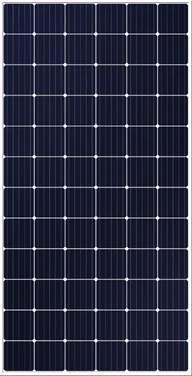

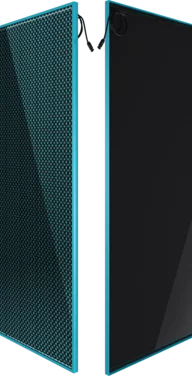

TYPE B
front side:
transparent glass
back side:
black glass
395 W
PV MODULE POWER

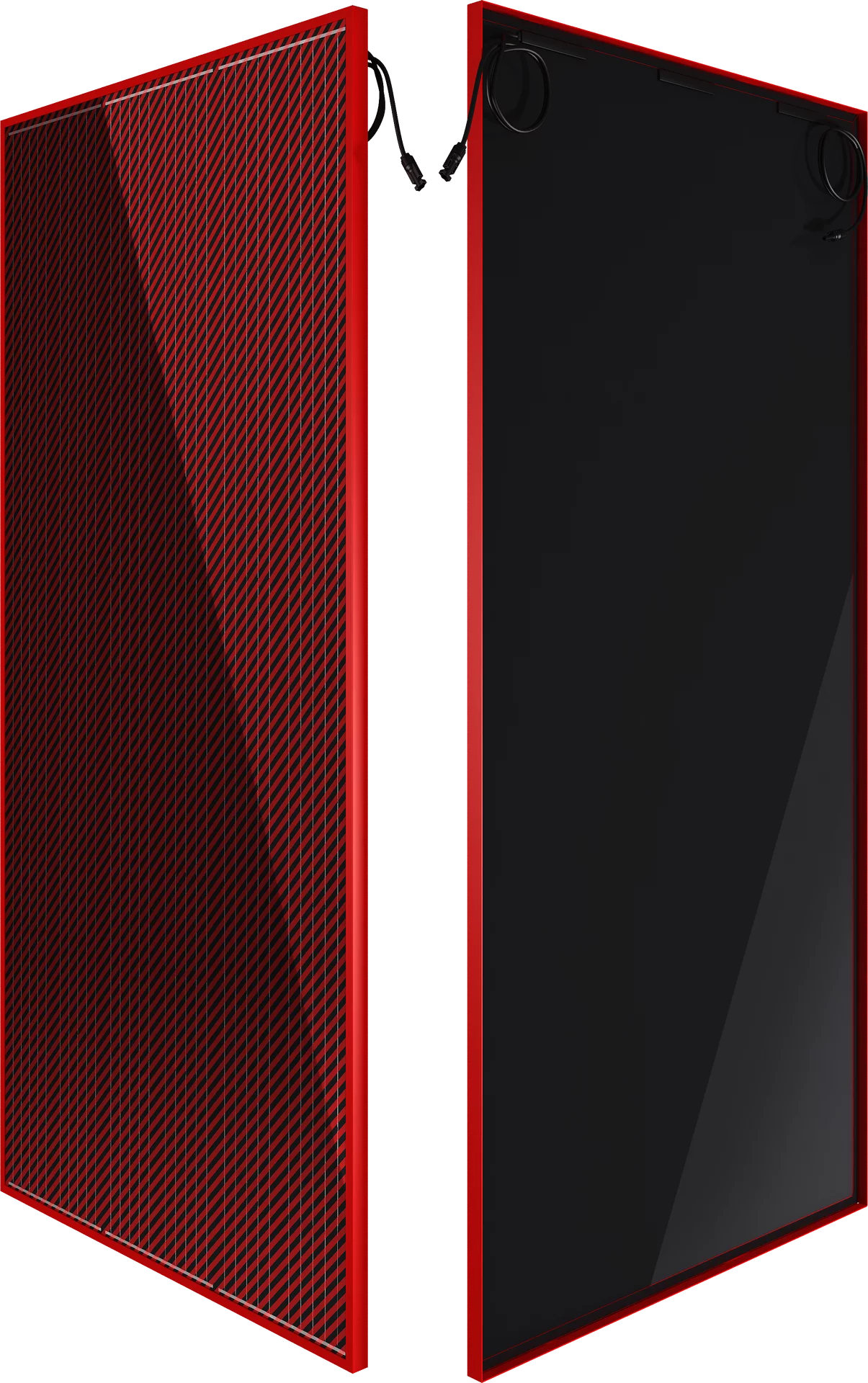

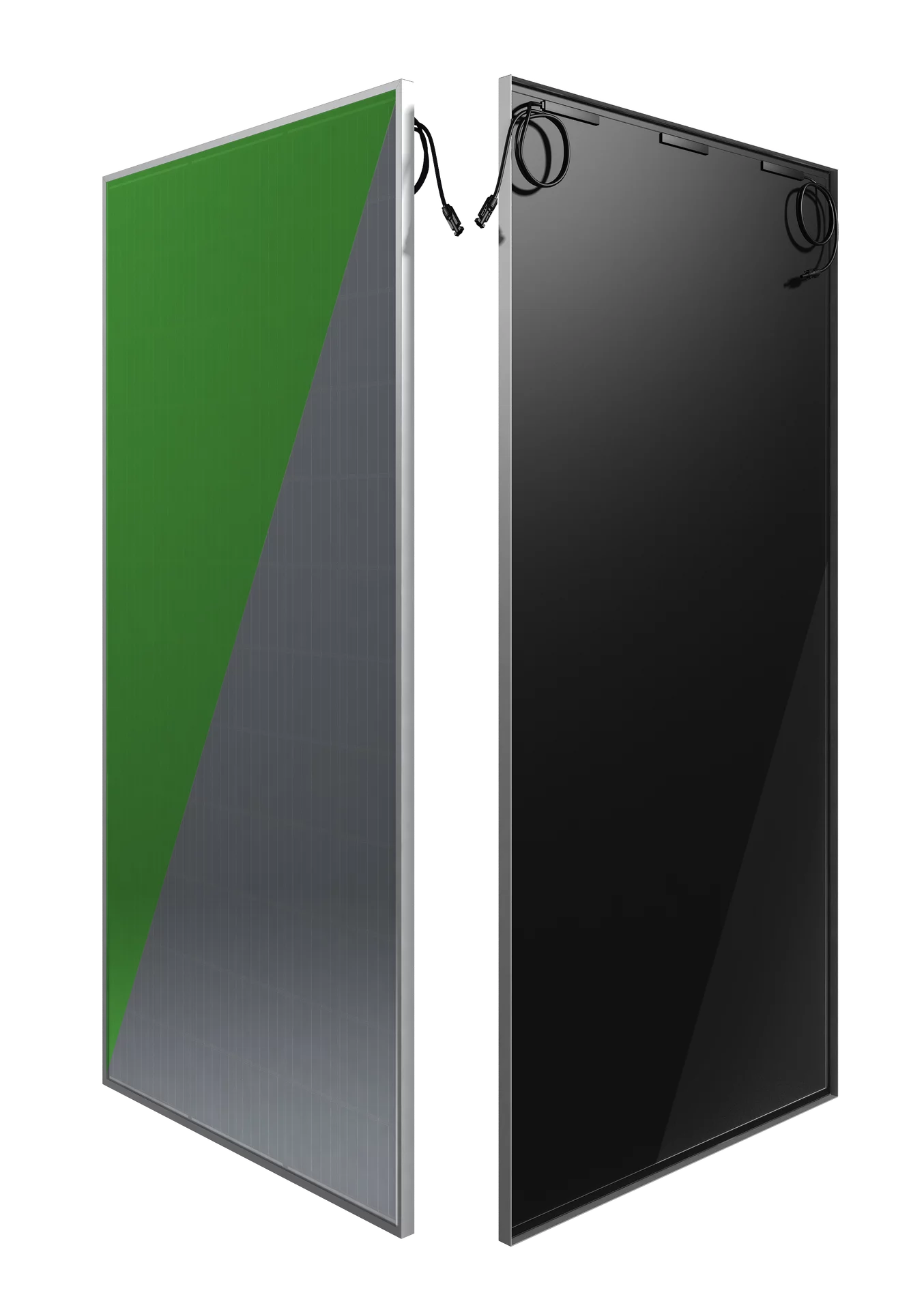

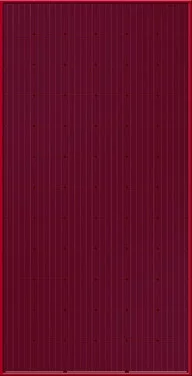

COLOR VERSION

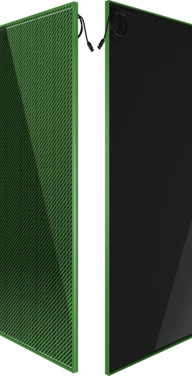

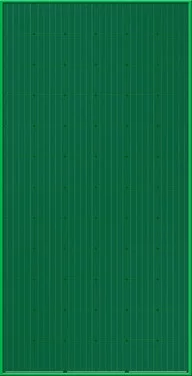

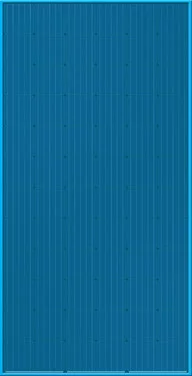

TYPE C
front side:
colored glass
back side:
black glass
360 W
PV MODULE POWER up to

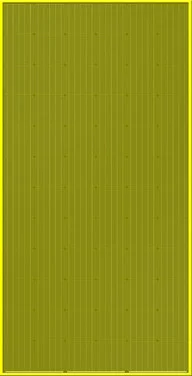

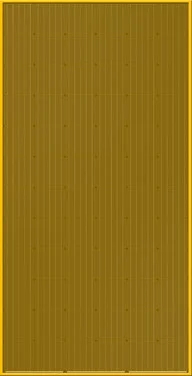

TYPE D
front side:
colored glass
back side:
black glass
395 W
PV MODULE POWER

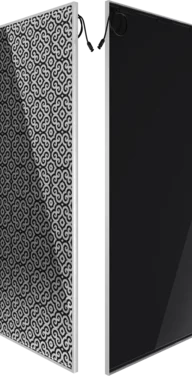

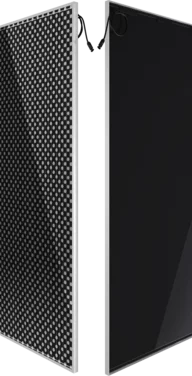

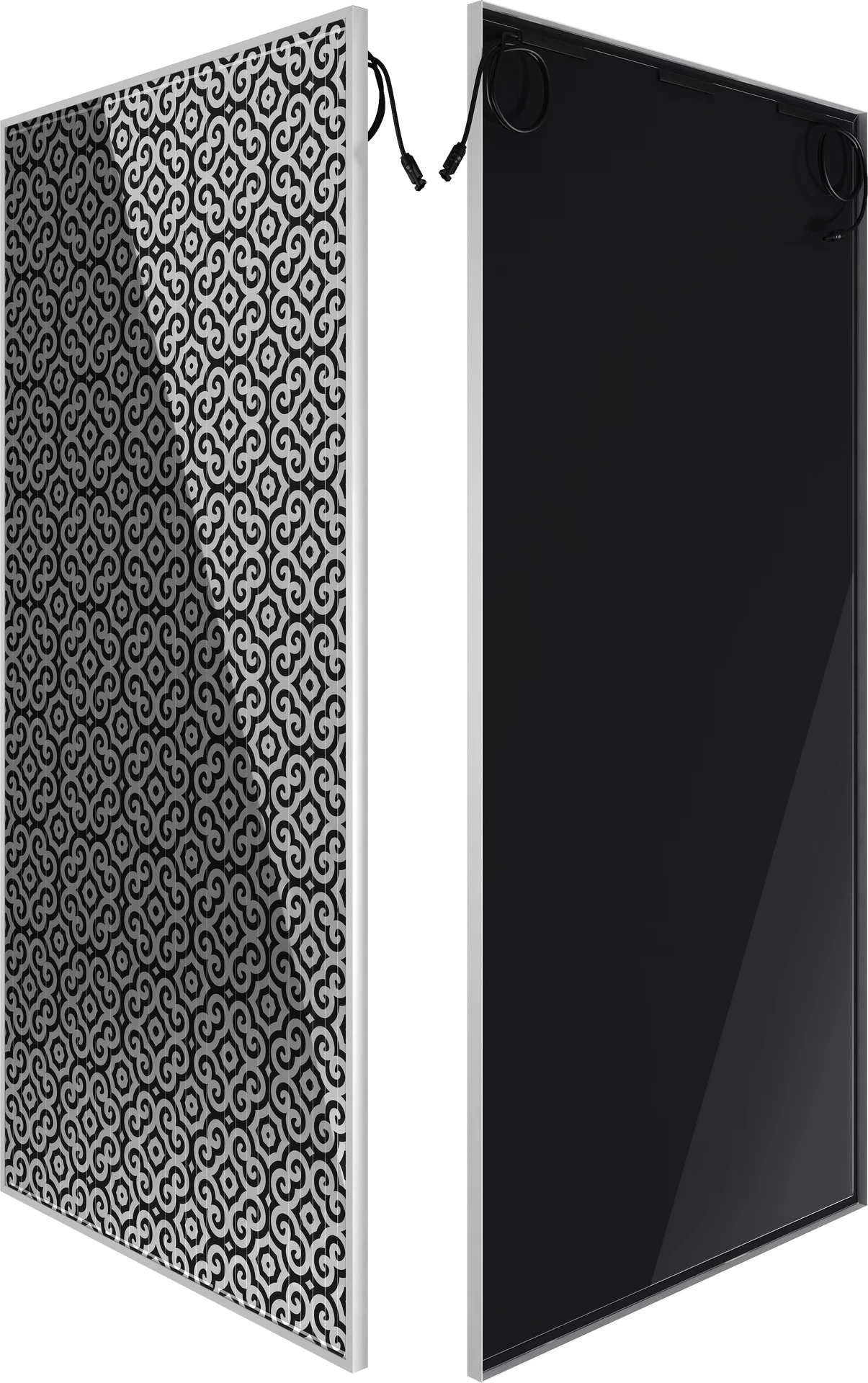

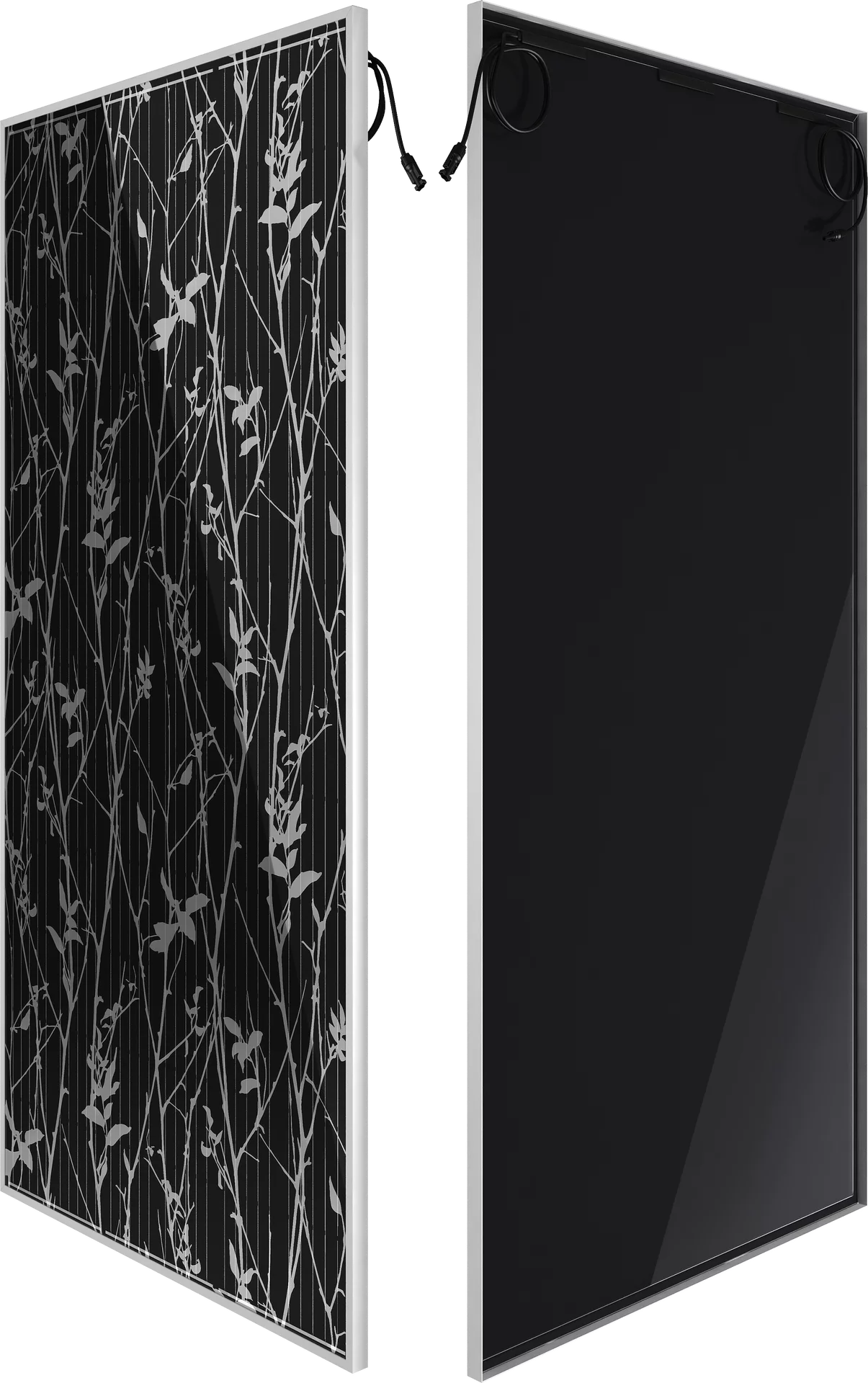

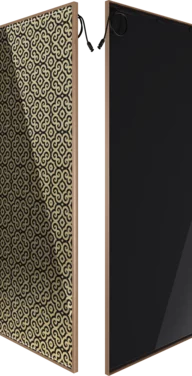

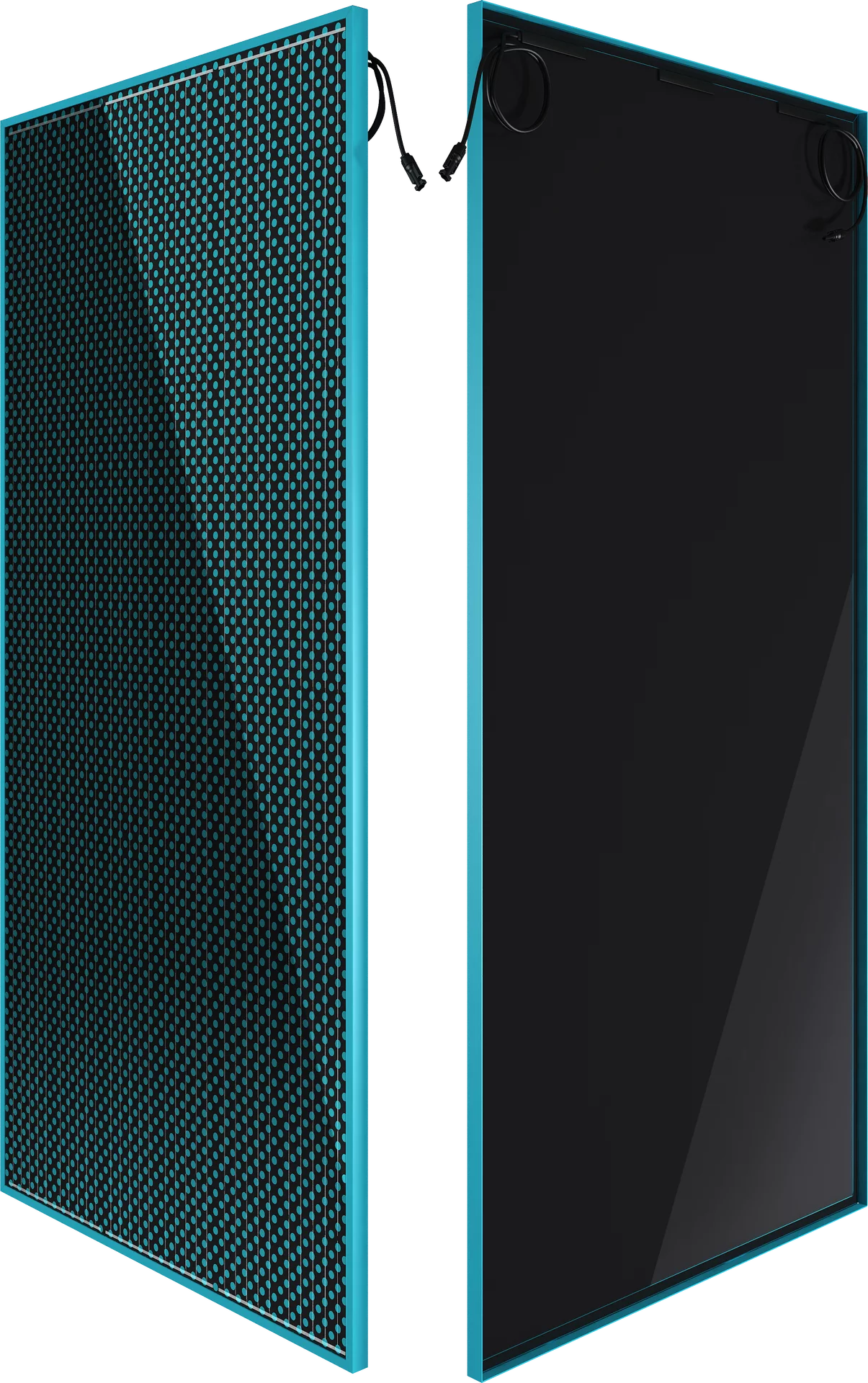

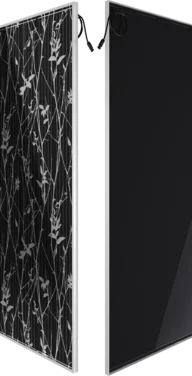

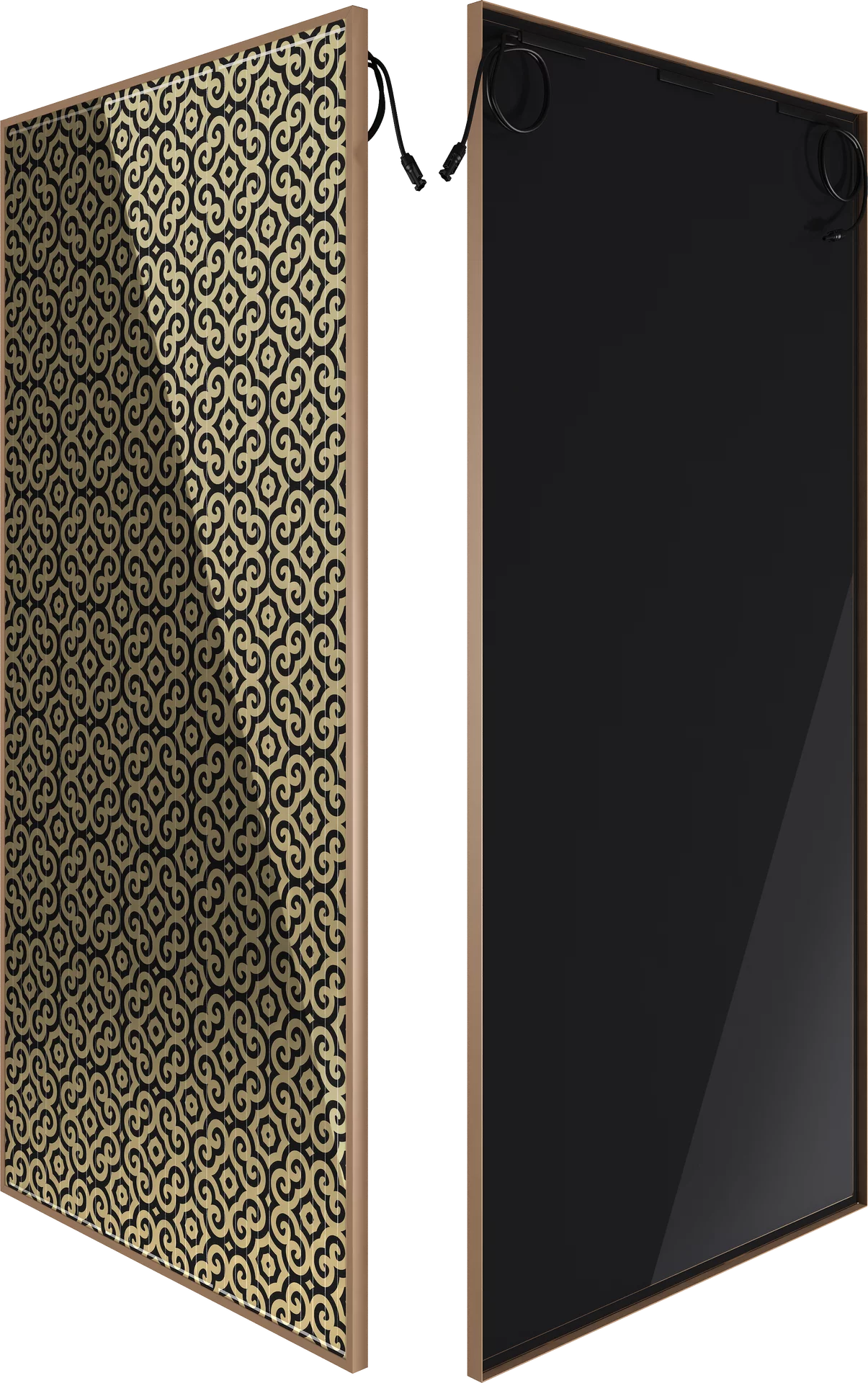

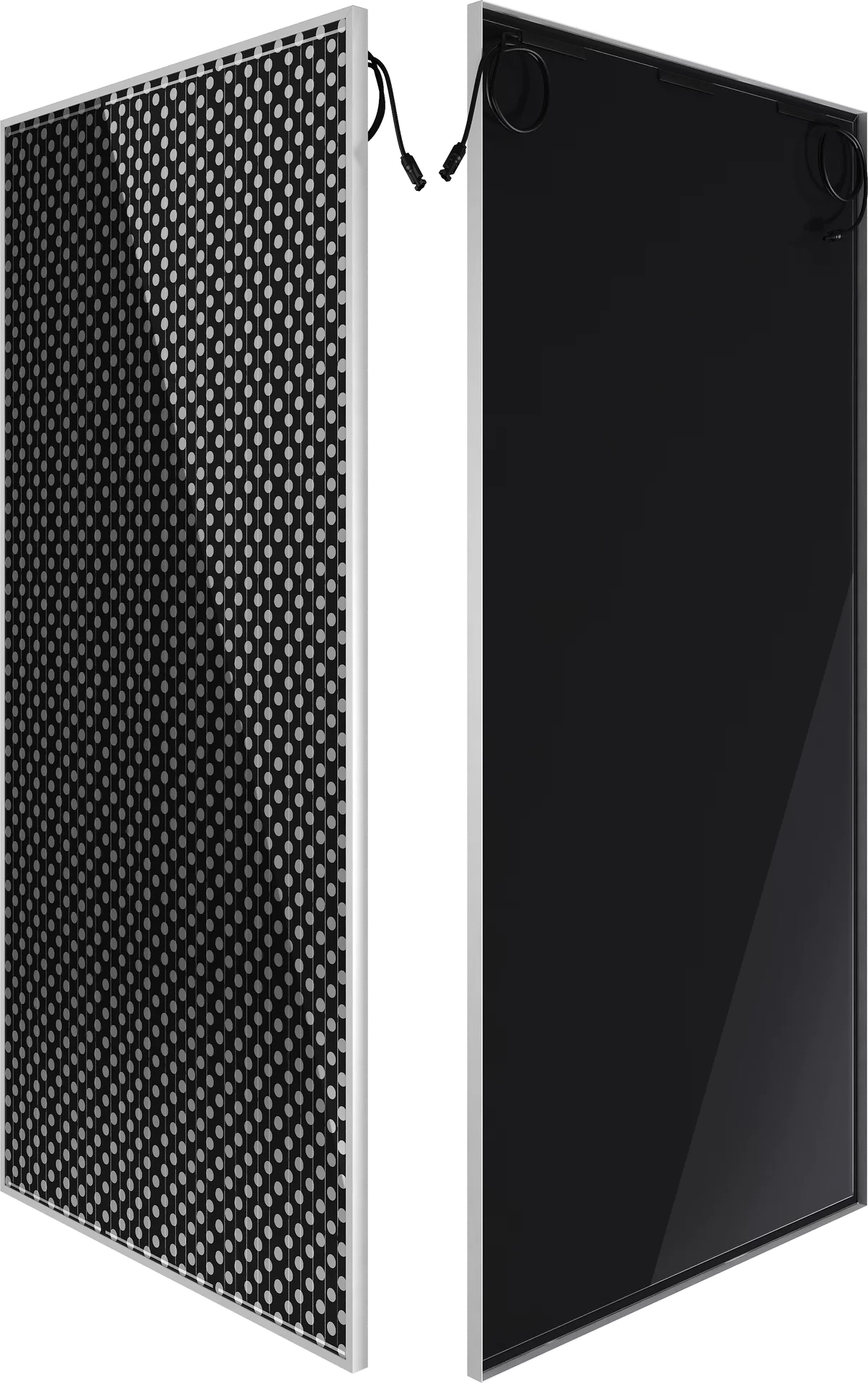

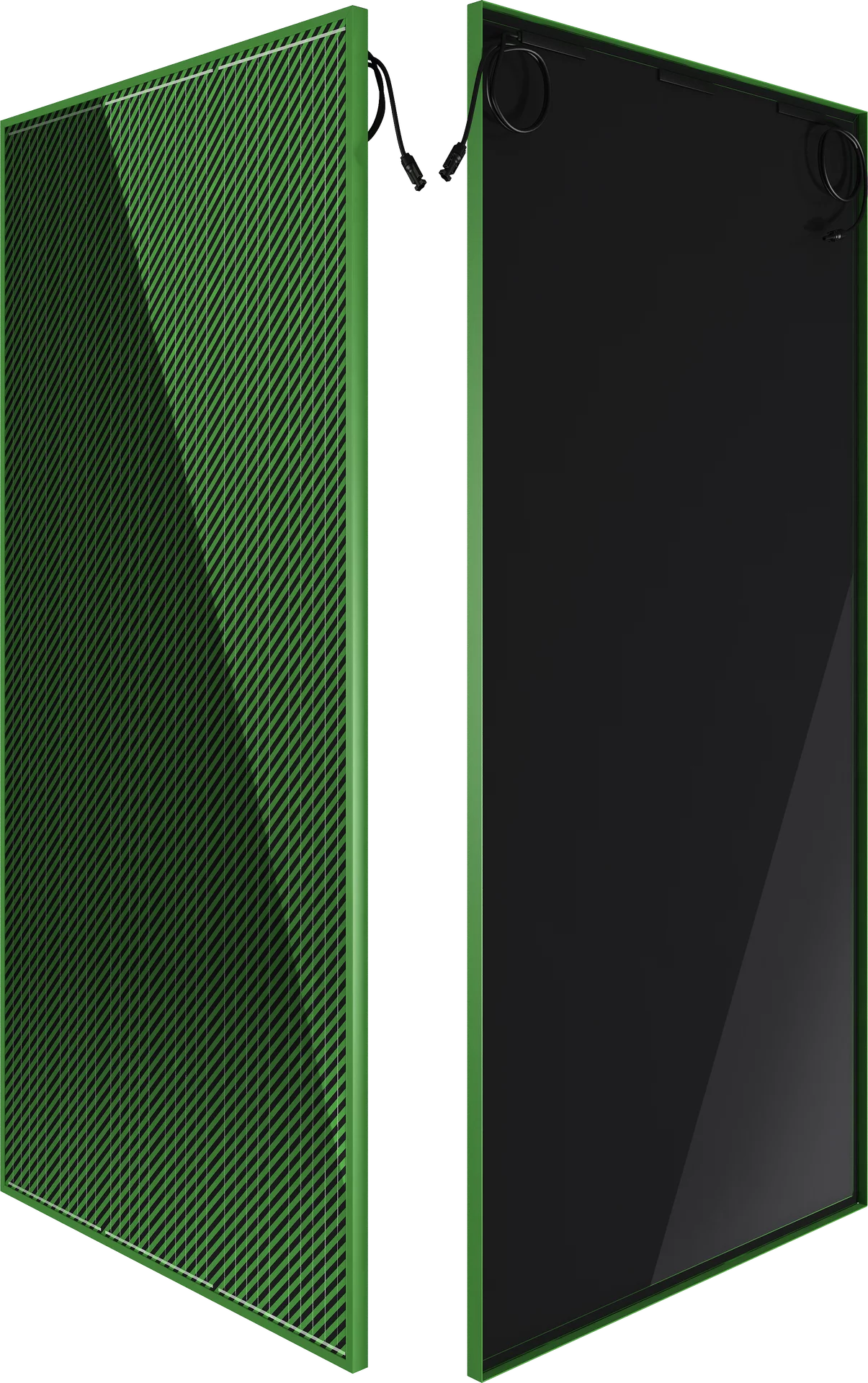

INDIVIDUAL SOLUTION
APPLY ANY IMAGE AND TEXTURE

Make a request

SPECIFICATIONS

Hevel modules are the basic element of BIPV solutions
TECHNICAL
ELECTRICAL
PERFORMANCE
Overall dimensions of the facing cassette with the PV module
2004 х 1048 х 46 mm
Weight
40 kg
PV module performance warranty
30 years
BIPV solution warranty
50 years
Fire hazard class of PV module
approved for use in houses and any other building type
Fire hazard class of the BIPV system
approved for use in houses and any other building type
Climatic conditions for system operation
from -45 to +85 °С
Module safety when operating in residential building
+
Nominal power (Pmax)
395 W
Nominal power deviation (Pmax)
0/+5 W
Max power current (Impp)
8,76 A
Max power voltage (Vmpp)
44,84 V
Short circuit current (Isc)
9,21 A
Open circuit voltage (Voc)
53,18 В
Maximum system voltage
1500 V
Operating temperature
from -40 to +85 °C
Nominal operating temperature
38,8 °С
