Home Solar panelsHVL-385/HJT

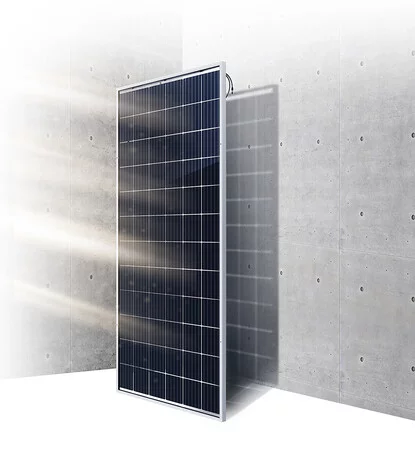

HVL-385/HJT

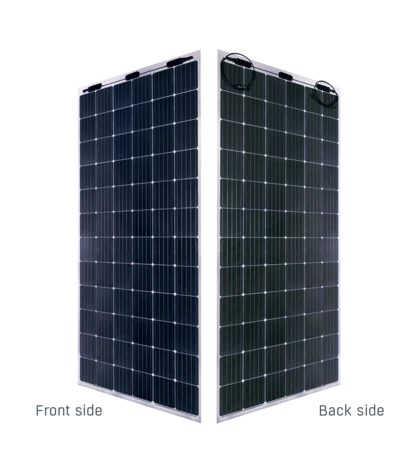

Glass-glass bifacial design
  • Nominal Power
    385 Wp
  • Efficiency
    19.3 %
  • Linear performance warranty
    30 years
  • Product Warranty, (materials and workmanship)
    15 years
  • Operating Temperature
    from -40 to +85 °С
  • Dimensions (LхWхT)
    1996x1002x30 mm
  • Max Power Current (Impp)
    8.67 A
  • Short Circuit Current (Isc)
    9.12 A
  • Open Circuit Voltage (Vос)
    52.95 V
  • Module technology
    Heterojunction (HJT)
  • Max Power Voltage (Vmpp)
    44.6 V
  • Temperature Coefficient, Vос
    -0.244 %/°С
  • Temperature Coefficient, Isc
    0.055 %/°С
  • Temperature Coefficient, Pmax
    -0.285 %/°С
  • Maximum System Voltage
    1500 V
  • Operating Temperature
    from -40 to +85 °С
  • 'NOCT
    38.8 °С
  • Maximum Static Load, front
    5400 Pa
  • Maximum Static Load, back
    3800 Pa
  • Fire rating
    C
  • Number of sides
    2
  • Weight
    32 kg
  • Volume
    0.66 m³
  • Junction Box: IP/bypass diodes
    IP65/3
  • Connector
    MC4
  • Cable Cross Section
    to order/4 mm/mm²
  • Product Warranty, (materials and workmanship)
    15 years
  • Linear performance warranty
    30 years
